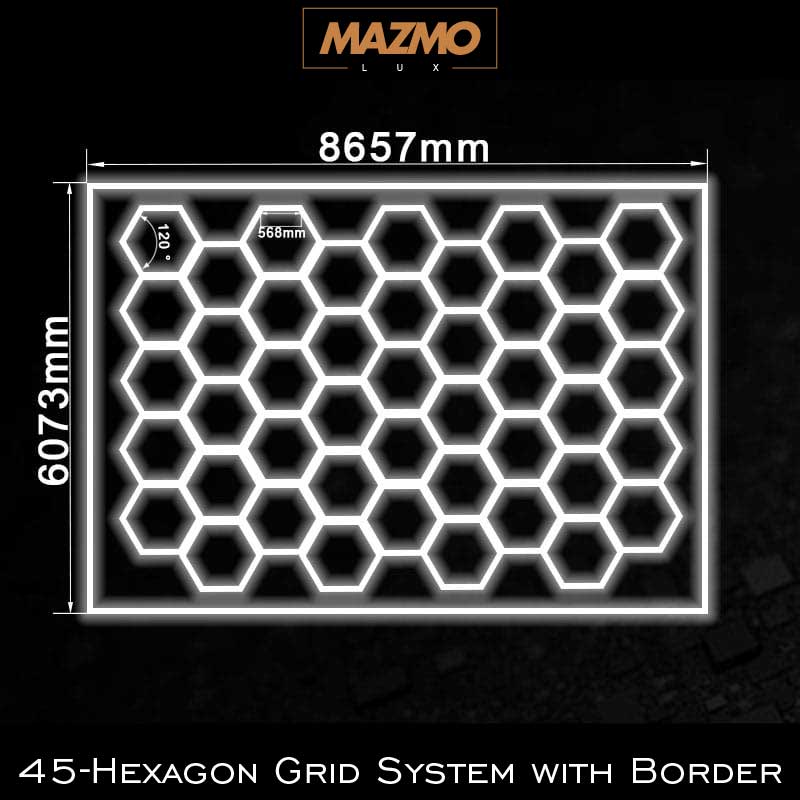

45-Hexagon Grid System with Border (28.4′ x 19.92′)

Mazmo Lux’s 45-Hexagon Lighting System with Border sets a new standard for performance lighting—delivering outstanding waterproof and dustproof protection to ensure consistent, stable illumination even in the harshest conditions. Its precision-engineered honeycomb LED modules enhance vehicle contours with sharp definition, boosting nighttime visibility by up to 40% for safer, more confident journeys.

Combining bold aesthetics with high-performance functionality, the bright honeycomb lighting not only illuminates but transforms vehicles into dynamic visual statements—where safety and style converge in perfect harmony.

The system’s modular ceiling design allows for flexible DIY splicing and custom configurations, giving users complete control over layout and expression—ideal for automotive showcases, luxury garages, and detail studios.

As an industry-leading manufacturer of LED hexagon lighting, Mazmo Lux offers guaranteed distributor pricing and highly competitive logistics solutions, helping partners increase sales profits by at least 30% with premium, in-demand lighting systems.

Parameters:
Size: 8657 mm x 6073 mm (28.4′ x 19.92′)
CCT: 6500K
Lifespan: 50000H / 3-years warranty
Power: 1684W
CRI (Ra>): 90
Input Voltage: AC 100-240V
Luminous Flux (Im): 110-120 lm/w
Working Temperature (℃): -20-70°
Light Tube Width: 22 mm
Material: Aluminum
LED Tube: 568 mm x 164 pcs, 750 mm x 2 pcs & 1178 mm x 22 pcs
90° connector: 3 pcs
180° connector: 22 pcs
T connector: 1 pc
Y connector: 88 pcs
V connector: 28 pcs

Application:
This versatile commercial lighting system is suitable for a wide range of environments, including retail shops, warehouses, showrooms, offices, factories, and more.

Certifications: ETL, CE, RoHS
Lighting Layout Design: Custom CAD drawings available

The 45-Hexagon Grid LED Lighting System with Border is particularly well-suited for factories, warehouses, showrooms and shops, offering a modular design that allows you to shape and transform the space. With its unique geometric aesthetic and inviting illumination, it creates a distinctive, modern atmosphere that enhances both client experience and visual clarity.
