10-Hexagon System with Border (16′ x 8′)

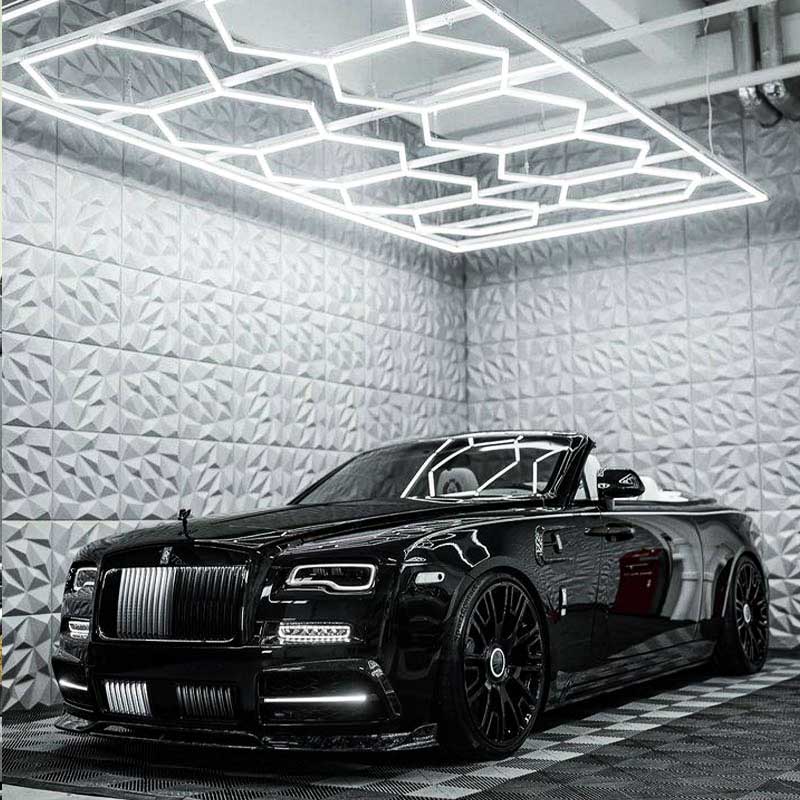

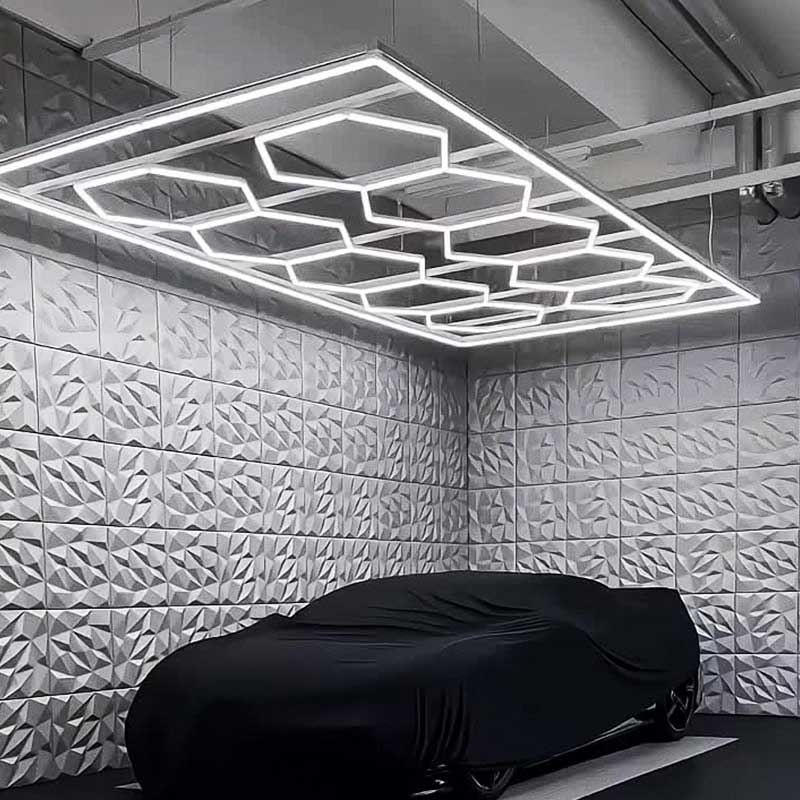

Mazmo Lux’s 10-Hexagon LED Lighting System with Border is a standout solution for garage ceiling installations—delivering high-lumen brightness and exceptional durability. With a robust protection rating, these LED fixtures are built to perform in demanding environments, transforming garages into brilliantly lit, functional spaces.

As an industry-leading manufacturer of premium LED hexagon lighting, we offer guaranteed distributor pricing and efficient, cost-effective logistics—empowering our partners to boost sales margins by up to 30% with confidence.

Parameters:

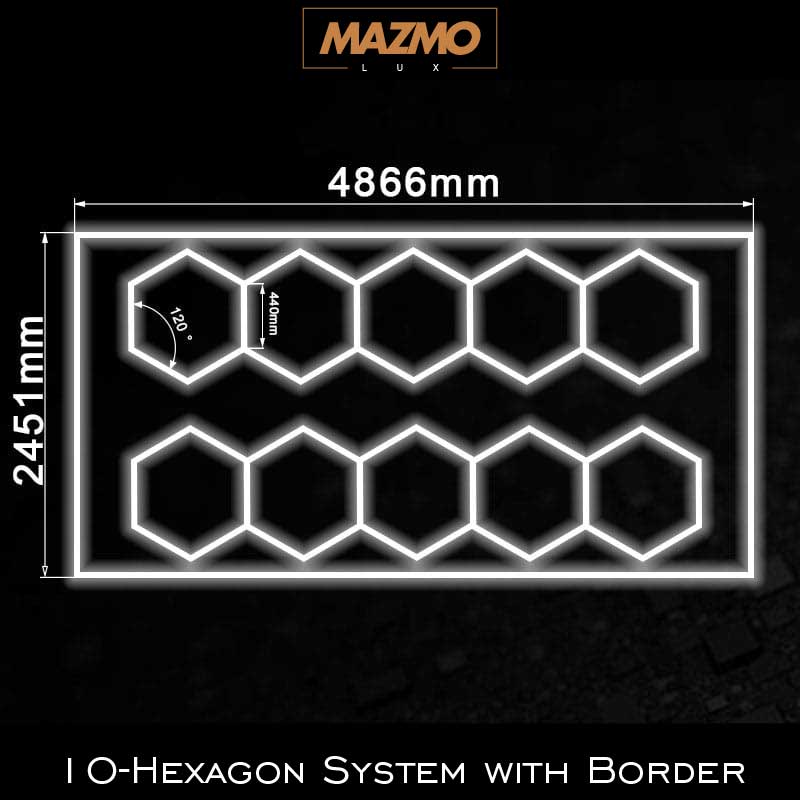

Size: 4866 mm x 2451 mm (16′ x 8′)
CCT: 6500K
Lifespan: 50000H / 3-years warranty
Power: 504W
CRI (Ra>): 90
Input Voltage: AC 100-240V
Luminous Flux (Im): 110-120 lm/w
Working Temperature (℃): -20-70°
Light Tube Width: 22mm
Material: Aluminum
LED Tube: 440 mm x 52pcs & 1178 mm x 12pcs
90° connector: 3 pcs
180° connector: 8 pcs
T connector: 1 pcs
Y connector: 18 pcs
V connector: 26 pcs

Application:
This versatile commercial lighting system is suitable for a wide range of environments, including retail shops, warehouses, showrooms, offices, factories, and more.

    Certifications: ETL, CE, RoHS

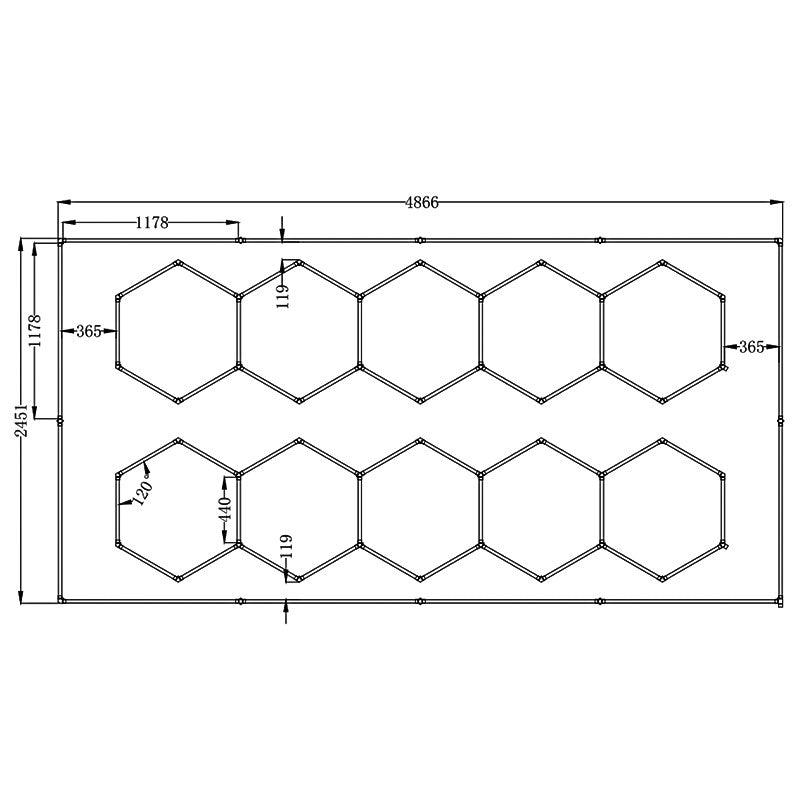

    Lighting Layout Design: Custom CAD drawings available

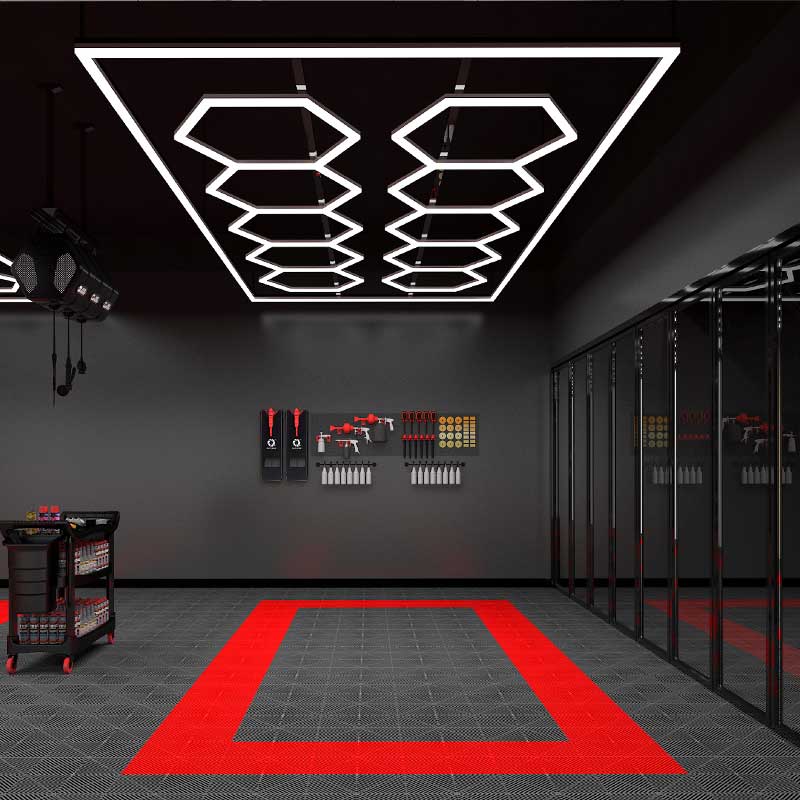

The 10-Hexagon LED Lighting System with Border is particularly well-suited for warehouses, showrooms and shops, offering a modular design that allows you to shape and transform the space. With its unique geometric aesthetic and inviting illumination, it creates a distinctive, modern atmosphere that enhances both client experience and visual clarity.
