10-Hexagon Grid System With Border (16′ x 8′)

Mazmo Lux’s 10-Hexagon Grid LED Lighting System with Border transforms garage ceilings with a seamless blend of functionality and design. Engineered for effortless installation, it comes complete with detailed manuals and specialised hardware—enabling even first-time users to achieve professional-grade results within minutes. Constructed from premium aluminium alloy, the honeycomb LED clusters offer optimised light diffusion for uniform brightness across every corner, while resisting dust and fingerprints for lasting clarity.

With its bold geometric form and minimalist aesthetic, this system elevates any garage into a luminous, clutter-free space—where industrial-grade durability meets striking modern design. The unique honeycomb configuration not only enhances visibility but also showcases your environment with distinctive, eye-catching appeal.

As an industry-leading manufacturer of LED hexagon lighting, Mazmo Lux offers guaranteed distributor pricing and competitive logistics solutions—helping partners increase sales margins by up to 30%.

Parameters:

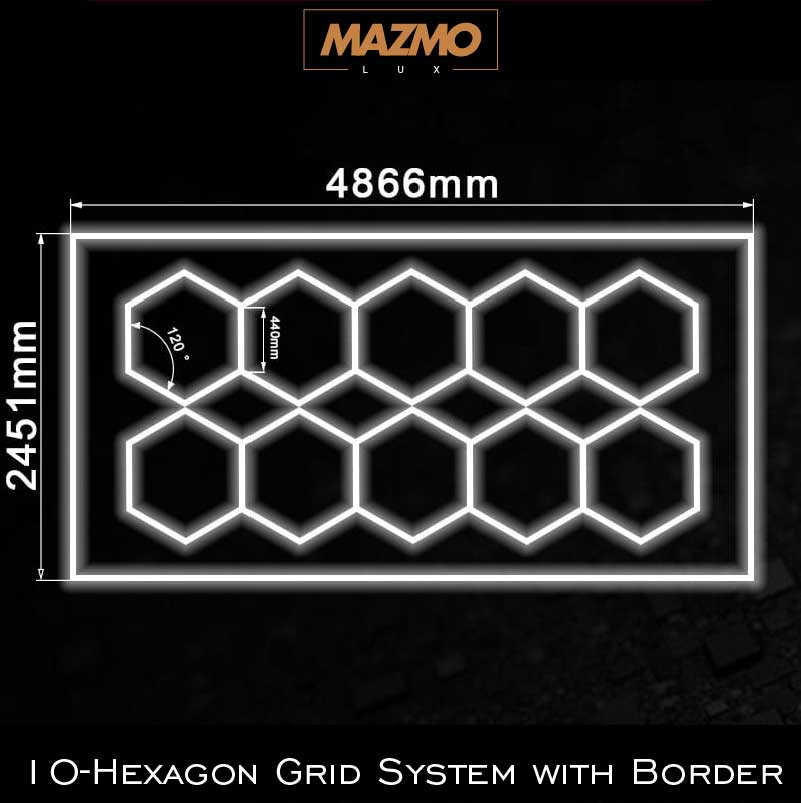

Size: 4866 mm x 2451 mm (16′ x 8′)
CCT: 6500K
Lifespan: 50000H / 3-years warranty
Power: 504W
CRI (Ra>): 90
Input Voltage: AC 100-240V
Luminous Flux (Im): 110-120 lm/w
Working Temperature (℃): -20-70°
Light Tube Width: 22 mm
Material: Aluminum
LED Tube: 440 mm x 52 pcs & 1178 mm x 12 pcs
90° connector: 3 pcs
180° connector: 8 pcs
T connector: 1 pcs
Y connector: 18 pcs
V connector: 26 pcs

Application:
This versatile commercial lighting system is suitable for a wide range of environments, including retail shops, warehouses, showrooms, offices, factories, and more.

    Certifications: ETL, CE, RoHS
    Lighting Layout Design: Custom CAD drawings available

The 10-Hexagon Grid LED Lighting System with Border is particularly well-suited for warehouses, showrooms and shops, offering a modular design that allows you to shape and transform the space. With its unique geometric aesthetic and inviting illumination, it creates a distinctive, modern atmosphere that enhances both client experience and visual clarity.
